Duroxite®

Duroxite® overlay products are designed for your most extreme wear situations targeting abrasion, impact, heat, metal-to-metal and erosion wear.

Top 5 reasons to choose Duroxite®

  1. PREMIUM OVERLAY PRODUCT
    As the manufacturer of the well-known Hardox® wear plate you can expect the same top quality overlay product with Duroxite® to maintain a long service life.
  2. GUARANTEED
    Wear properties guaranteed throughout overlay plate and pipe down to 75 % of overlay. – Overlay thickness for plates and pipes delivered within ±10%.
  3. WIDE PRODUCT RANGE
    Targeted to different types of wear including abrasion, impact, heat, metal to metal and erosion wear.
  4. UNIQUE PRODUCTS
    Duroxite® 101 with Hardox® wear plate backing provides increased impact resistance.
  5. GOOD FORMABILITY

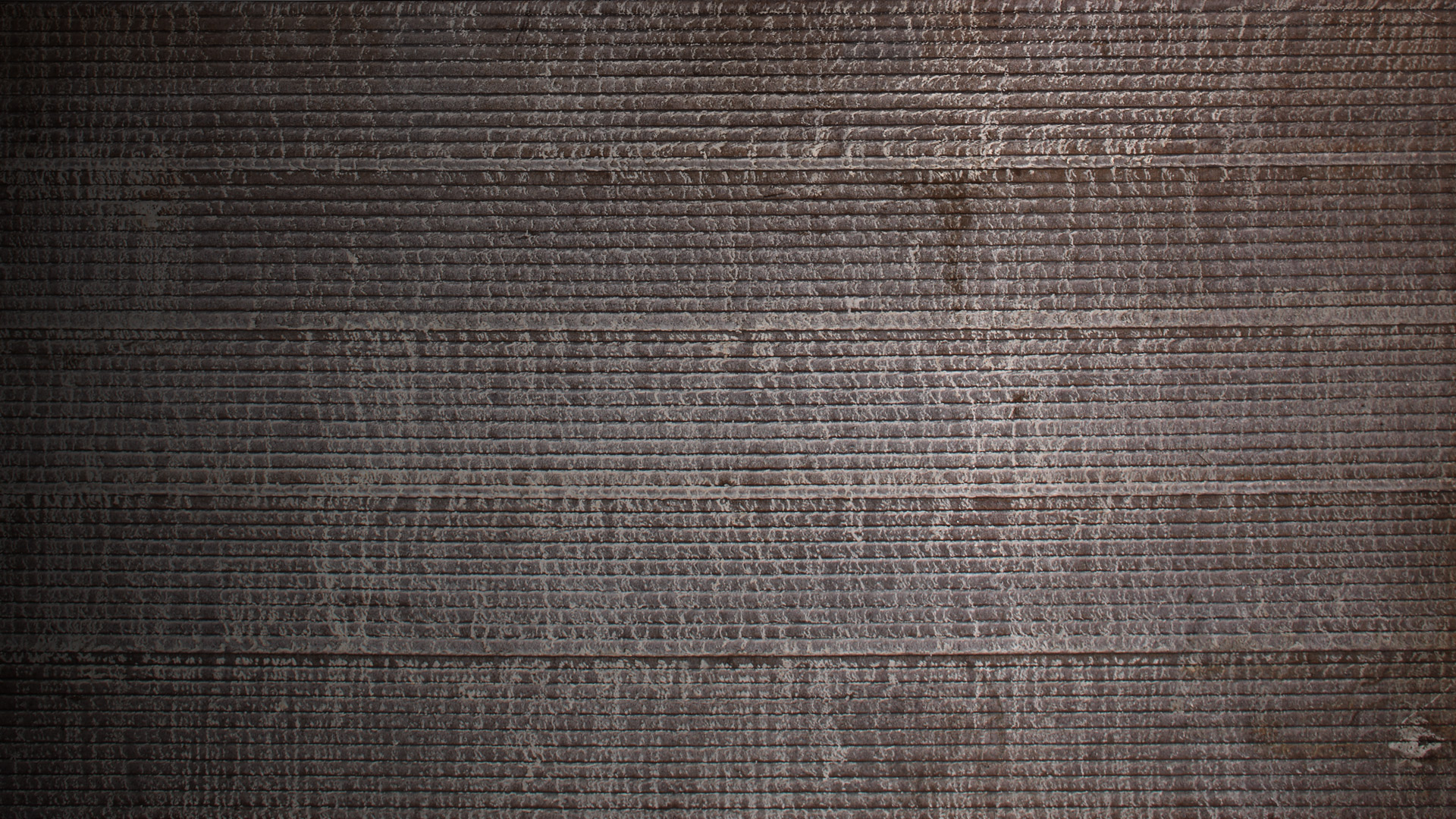

    Due to staggered cracking pattern on overlay surface.

What is Duroxite®?

Duroxite® overlay products are designed for your most extreme wear situations targeting abrasion, impact, heat, metal-to-metal and erosion wear. Overlay is manufactured by depositing layers of materials on backing materials using arc welding processes. The deposited materials usually provide different properties from backing materials, such as wear resistance, impact resistance, or metal-to-metal wear properties. The performance of Duroxite® saves money and improves productivity in a wide range of applications thanks to higher output and less maintenance.

Guaranteed overlay thickness, guaranteed overlay properties

Duroxite® overlay plates and pipes are delivered with an overlay thickness guaranteed within ±10%. This is consistent throughout the material and between individual plates and pipes. The wear properties of Duroxite® are also guaranteed throughout the overlay down to 75% of the overlay thickness. The remaining 25% of overlay is the transition layer necessary to maintain fusion line bonding to the base material.

Wide products range

Duroxite® is particularly well suited to face sliding wear from exceptionally hard particles. Duroxite® is delivered as plate and wire, ready for installation on your equipment or further application in your workshop. Depending on application, a wide range of products with different properties – hardness, impact resistance as well as heat resistance — is available.

Which overlay will suit you?

Do you know which overlay will fit with your application? Check the properties below and learn more:

Duroxite® logotype
Duroxite overlay bucket

Pin

Duroxite® 400 Pin is designed to withstand severe heat and metal-to-metal wear applications. It is used in for example dragline buckets and shovels, clam shell buckets, sheave and backhoe pins, and crusher shafts.

Duroxite® 400 Pin
Diameter: 127-280 mm
Length: Up to 2.74 m
Typical surface hardness (multiple passes): 52-54 HRC

pdf 35 Kb
Duroxite® Overlay Pin dimensional program
Duroxite pins

Sliding wear

Hide/Show specific columns Edit
Select columns to display
    Attribute DUROXITE® 100 DUROXITE® 101
    HARDOX® BASE PLATE
    DUROXITE® 100 WIRE
    Product description A chromium-rich overlay deposited on a mild steel backing plate for sliding wear and moderate to low impact applications up to 350˚C A chromium-rich overlay deposited on Hardox® 450 base plate. A flux-cored open-arc wire for hard facing components subject to sliding wear applications.
    Dimension Diameter Single pass:
    3 mm on 6 mm
    5 mm on 8 mm
    Multiple passes:
    6 mm on 6 mm
    6 mm on 10 mm
    10 mm on 10 mm
    12 mm on 12 mm
    20 mm on 10 mm
    - -
    Diameter - - 1.2 mm
    1.6 mm
    2.8 mm
    Properties Bulk hardness:
    Single pass 55-57 HRC,
    double pass 59-62 HRC,
    triple plus passes 60-64 HRC
    Carbide hardness:
    1700 HK
    Volume fraction of primary carbides:
    30-50%
    ASTM G65-Procedure A
    weight loss:
    0.18 g max.
    Bulk hardness:
    Single pass 55 to 57 HRC,
    double pass 56 to 59 HRC,
    triple pass 58 to 63 HRC
    Carbide hardness:
    1700 HK
    Volume fraction of primary carbides:
    30-50%
    ASTM G65-Procedure A
    weight loss:
    0.18 g max.
    Chemical composition (wt. %):
    4.7 C, 0.2 Mn, 0.6 Si, 27.0 Cr, balance Fe
    Surface hardness:
    Two-layer deposit on mild steel: 58 to 65 HRC
    Three-layer deposit on mild steel: 60 to 65 HRC
    ASTM G65-Procedure A
    weight loss:
    0.18 g max.
    Typical applications Chutes/hoppers, liners for truck beds, dozer blades, shovel buckets, dragline buckets, excavators, separator guide vanes, discharge cones for clinker storage bins, chutes for sintering ore conveying, outlet ducts for clinker grinding mills, receiving hoppers, dredging pipes and pumps, suction pipelines, pump discharges, fan blade/ housings, coke vibrating screen plates, coal handling chutes, coal feeder liners, crusher screen plates, classifier cones, journal liners, silo bunkers Slurry pumps, chutes, dredging pipes, cullet glass, air ducts, carbon injection pipes, suction lines, troughs Loader bucket liners, bucket lip and side shrouds, jaw shrouds, heel pads and dewatering conveyors, coal discharger chutes.
    Compare parameters

    Select one parameter to compare

    Comparison

      Severe sliding wear

      Hide/Show specific columns Edit
      Select columns to display
        Attribute DUROXITE® 200 DUROXITE® 200 WIRE
        Product description A complex carbide overlay deposited on a mild steel backing plate for severe sliding wear and moderate impact applications up to 600˚C (1100˚F). A flux cored open-arc wire for hardfacing components subject to severe sliding wear applications.
        Properties Bulk hardness:
        60-65 HRC
        Carbide hardness:
        2500-3000 HK
        Volume fraction of primary carbides:
        30-50%
        ASTM G65-Procedure A
        weight loss:
        0.12 g max.
        Chemical composition (wt. %):
        5.3 C, 0.5 Mn, 0.2 Si, 22.0 Cr, 6.5 Nb, Balance, Fe
        Surface hardness:
        Single pass 57-60 HRC
        Double pass 60-65 HRC
        ASTM G65-Procedure A
        weight loss:
        0.12 g max.
        Typical applications Chutes, liner plates, conveyors sides, underground mine skips, cement furnace components, sinter plant parts, fan blades, mixer blades, crews, gyratory mantles, coal and cement pulverizer rolls, raw material crushing components, molding panels, ore sintering, crushing, riddling, blast furnace hoppers, throats, and ovens Screen plates, loader bucket liners, feeding systems for ball mills, loader bucket liners, bucket lip shrouds, bucket side shrouds, chutes, liner plates and skip liners, cement furnace components, sinter plant parts, fan blades, mixer blades, crews, gyratory mantles, coal and cement pulverizer rolls, raw material crushing components, molding panels, coal discharger chutes
        Compare parameters

        Select one parameter to compare

        Comparison

          Looking for help deciding on an overlay?

          Our team at Abraservice will help you back on your feet in no time and will tailor your solutions to your needs. Contact us and we‘ll get back to you quickly.

          Knowledge and expertise

          Duroxite® overlay is designed by SSAB’s experts in wear technology and produced by the leading company in welding consumables as well as equipment. Both companies worked out the best possible hard-facing process and chromium carbide welding consumables in order to achieve the best possible properties. This cooperation brought our customers incredible products which provide longer service time than other CCO plates available on the market. Duroxite®’s overlay is measured from top surface to initial base surface, which gives real overlay thickness. This means you get what you are paying for: optimum weld overlay carbide concentration and consistently good abrasion resistance from the top surface through 75% depth of overlay.

          DUROXITE® in fabrication

          Duroxite® is designed to be hard, without giving you a hard time in the workshop. Even the most worn-out equipment can be rebuilt and repaired to perform as new. With our broad product offering, including Hardox® wear plate and Duroxite®, and top-of-the-line processing equipment, you are able to restore products of practically any condition, size and design.

          Installing Duroxite®

          No special equipment is needed to install Duroxite® products. Welding and bolting are the common methods for installing Duroxite® overlay plate or wear parts onto your equipment. When joining base metal use 480 MPa or 560 MPa consumables. Any surface exposed to severe wear should be protected with hard-surfacing consumables. Cap welding a Duroxite® product with Duroxite® Wire ensures the weld will have the same wear resistance, resulting in a consistent service life for the entire overlay product.

          Safety precautions

          When welding or cutting Duroxite® products, smoke is produced containing harmful fumes and gases that are chemically highly complex and difficult to easily classify. The major toxic component in the fumes and gases produced in the process is hexavalent chromium. The proper exhaust ventilation equipment and fume-extraction torches are recommended, as well as suitable protective clothing and respiratory protection for operators.

          Downloads

          pdf 225 Kb
          Abraservice introduce Duroxite® overlay products
          pdf 8.01 Mb
          Duroxite® Brochure-The Latest in Overlay Technology
          pdf 1.24 Mb
          Duroxite® Overlay Wires and Electrodes
          pdf 64 Kb
          Duroxite® Overlay Plate dimension program
          pdf 45 Kb
          Duroxite® Overlay Welding Consumable dimension program
          Hide/Show specific columns Edit
          Select columns to display
            Product Name Overlay Backing plate Datasheet
            Duroxite® 100 Chromium carbide overlay (CCO) Mild steel

            Duroxite® 100

            Duroxite® 101 Chromium carbide overlay (CCO) Hardox® 450

            Duroxite® 101

            Duroxite® 200 Complex carbide overlay Mild steel

            Duroxite® 200

            Duroxite® 201 Complex carbide overlay Hardox® 450

            Duroxite® 201

            Duroxite® 300 Ultra-fine complex borocarbide overlay Mild steel

            Duroxite® 300

            Duroxite® 500 Ultra-fine complex borocarbide overlay Mild steel

            Duroxite® 500

            Compare parameters

            Select one parameter to compare

            Comparison

              Hide/Show specific columns Edit
              Select columns to display
                Product Name Type of consumables Welding process Datasheet
                Duroxite® 100 WIRE Chromium carbide overlay (CCO) Open arc

                Duroxite® 100 Wire

                Duroxite® 200 WIRE Chromium carbide overlay (CCO) Open arc

                Duroxite® 200 Wire

                Duroxite® 300 Wire Complex carbide overlay wire Open arc

                Duroxite® 300 Wire

                Compare parameters

                Select one parameter to compare

                Comparison
