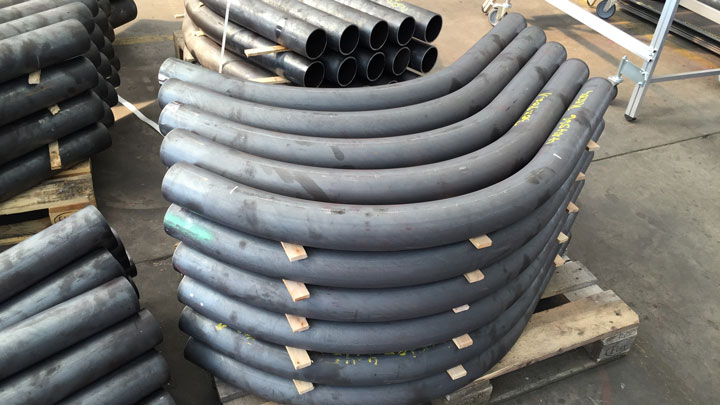

Abratube® 600

Abratube® 600 is made of hardenable steel available in a wide range of diameters and wall thicknesses. The inner part of the tube is induction hardened which gives hardness of about 600 HBW and the outer diameter has about 300 HBW. Abratube® 600 offers excellent technical and utility properties.

Download datasheets

In order to solve the various wear phenomena caused by the handling of different aggressive bulk materials, diverse solutions have been proposed to the market. Nevertheless, many of these solutions have limitations when considering processing and fabrication as well as high cost factor. Abratube® 600 was developed to offer a compromise between technical and cost requirements, as well as being a relatively easy solution to work with.

Abratube® 600 is made of hardenable steel. The inner part of the tube is induction hardened which gives hardness of about 600 HBW and the outer diameter has about 300 HBW. Abratube® 600 is available in a wide range of diameters and wall thicknesses along with corresponding flanges and accessories.

Abratube® 600 offers excellent technical and utility properties. With its excellent fabrication and processability, it offers many advantages when compared with cast tubes or internally overlaid.

Thanks to homogenous microstructure, Abratube® 600 offers advantages in regards to wear evolution and can be followed up with ultrasonic testing to be more reliable.

The tubes not only have excellent internal wear resistance but can be cut and welded during fabrication which also allows easy maintenance repairs.

Typical fields of application are: mines and quarries, steel and energy industry, recycling and pneumatic waste handling.

Dimensions, typical values*

  Diameter, mm  Length, mm
Abratube® 600  80–500  6000 and 12000

*Special dimensions on demand.
